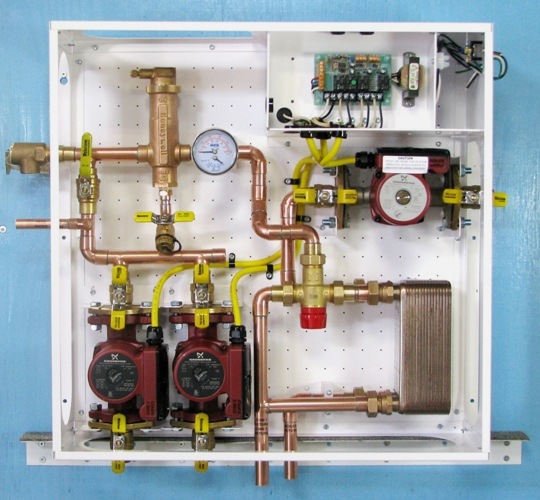

HES-30P (with Potable Mixing Valve)

• Used for separating hydronic systems
• Consist of a pre-piped and pre-wired unit to be used with Primary/Secondary piped hydronic systems
• Available with a "High" or "Low" temperature zone, and is supplied with one circulator pump and a primary pump
• Available with a 20, 30 or 50 plate heat exchanger
• An option is to have a potable mixing valve for the domestic piped within the station
• White Powder Coat Appliance Finish
• Organic Acid Bath Polished Copper Piping
• 1" Flange Body Pumps UPS 15-58FC Standard
  Pumps can be upgraded
• Electronic Relay Control Board
• Flow Switch connection on Control Board
• Pump Duty Cycle Timer Options
• LED Indicator Lights
• System Bleed Purge Valve
• Return Ball Valves
• Integral Pump Flow Check Valves
• Additional Components:
  T&B Valve
  Air Eliminator
  Tridicator
  Y-Strainers
