PLS-1RB

PLS-2RS

PLS-NBF-2RB

Description:

* All stations are supplied with a lid and have a white powder coat appliance finish.
* Consist of a pre-piped Primary loop to be used with Primary/Secondary piped hydronic systems.
* Available with specified port locations for both boiler and zone supply and returns. Piping sizes up to 2”.
* 1 or 2 primary circulators are available dependant upon application.

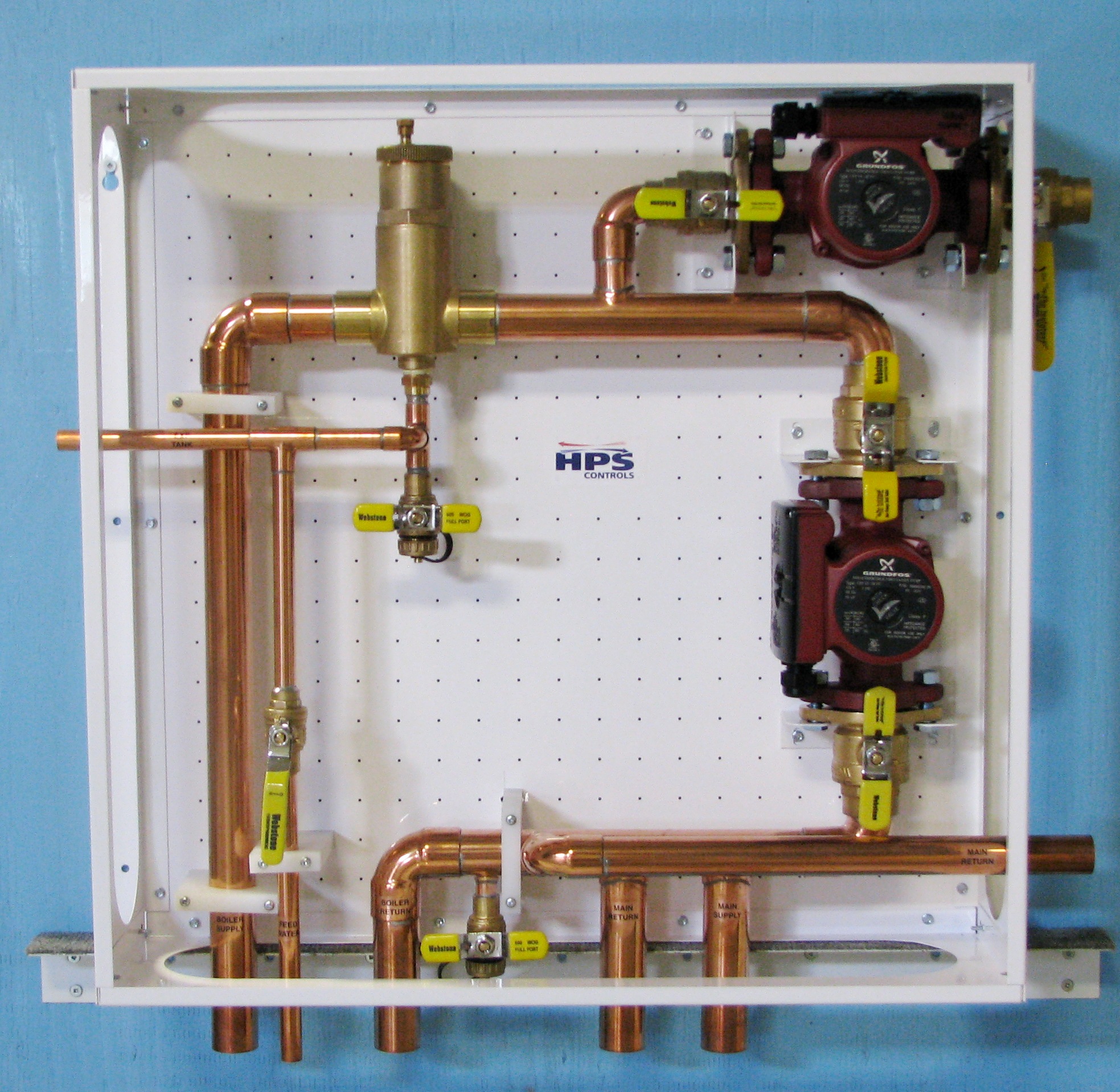

PLS-1 (One Pump Primary Loop )

• Used for standard single primary pump applications with no priority pump requirement off the primary loop.

PLS-2 (Two Pump Primary Loop )

• Used for 2 primary pump applications. Second pump is designed to work as a priority zone for an indirect water heater or other priority system.

Can be coupled or grouped with other HPS Zone Control Stations to complete a simplified and professional looking boiler

• Organic Acid Bath Polished Copper Piping

• Integral Pump Flow Check Valves

• System Bleed Purge Valve

• Air Eliminator Double Check

• Backflow Preventer Feed Water Regulator

• Isolator Ball Valve



AVAILABLE MODELS

Click on text for Schematic Diagram

HP800101 (PLS-1RB) One Pump-Right Bottom Boiler

HP800102 (PLS-1LB) One Pump-Left Bottom Boiler

HP800103 (PLS-1RS) One Pump-Right Side Boiler

HP800104 (PLS-1LS) One Pump-Left Side Boiler

HP800202 (PLS-2RS) Two Pump-Right Side Boiler

HP800202 (PLS-2LS) Two Pump-Left Side Boiler

HP800203 (PLS-2RB) Two Pump-Right Bottom Boiler

HP800204 (PLS-2LB) Two Pump-Left Bottom Boiler

HP800403 (PLS-NBF-2RB) Two Pump-No backflow preventer & feedwater regulator-Right Side Boiler

HP800404 (PLS-NBF-2LB) Two Pump-No backflow preventer & feedwater regulator-Left Bottom Boiler
